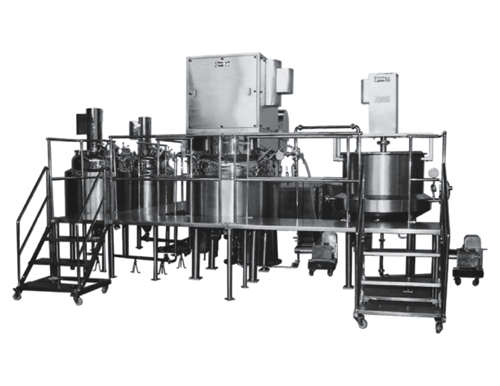

Ointment Manufacturing Plant

Ointment Manufacturing Plant Features:

Fully automatic untouched process for Ointment manufacturing plant.
cGMP compliance with CIP / SIP facility.
Capacities available from 25 kgs. to 2500 kgs. batch capacity
Fully automatic plant consisting of Wax Phase vessel, Water phase vessel, Manufacturing vessel & storage vessel with interconnecting pipe lines, transfer pumps and integrated control panel.
Working platform for 200 kgs. and above capacity plants.
Entire plant can be operated through integrated control panel, by 01 skilled & 01 semi skilled operator.
Wax & water phase transferred by means of vacuum transfer, to main manufacturing vessel.
Semi contra type mixer for cream / ointment manufacturing. Contra rotary mixer can be provided upon demand.

Main mixer shall be provided with heating / cooling jacket with digital temperature controller.
Plants available for sterile ointments manufacturing.
Process piping is highly Electro polished and joints are DIN / TC standard for easy opening & re-fixing.
Hydraulic Power Pack with cylinder to lift complete agitator assembly with top lid for product recovery / Easy to cleaning / Change over of batch & for maintenance.
VFD for Anchor agitators to vary the RPM as per product / Recipe.
Different plant layouts to suit site conditions or customers’ requirement.
Cleaning validation by SWEB testing match international standard less than 10 PPM OR by CIP system with online conductivity.
Load Cell for accurate weighing of final products.
Vacuum system save timing to transfer product from one vessel to another vessel and zero retention in pre phase vessel & inter connecting pipeline.
